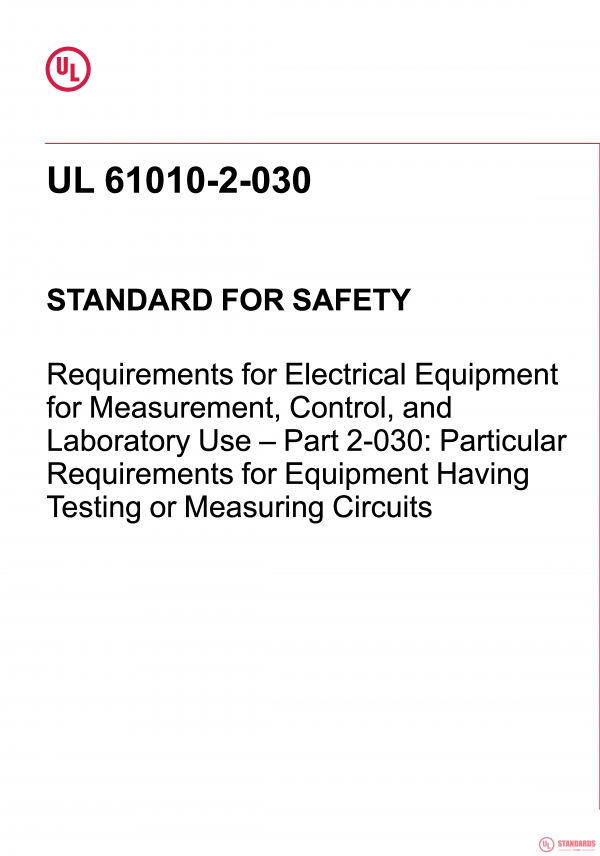

UL 61010-2-030 PDF

1 Scope and object

This clause of Part 1 is applicable except as follows:

1.1.1 Equipment included in scope

Replacement:

Replace the text with the following:

This group safety publication is primarily intended to be used as a product safety standard for the products mentioned in the scope, but shall also be used by technical committees in the preparation of their publications for products similar to those mentioned in the scope of this standard, in accordance with the principles laid down in IEC Guide 104 and ISO/IEC Guide 51.

This part of IEC 61010 specifies safety requirements for equipment having testing or measuring circuits which are connected for test or measurement purposes to devices or circuits outside the measurement equipment itself.

These include measuring circuits which are part of electrical test and measurement equipment, laboratory equipment, or process control equipment. The existence of these circuits in equipment requires additional protective means between the circuit and an

OPERATOR

.

NOTE These testing and measuring circuits can, for example:

– measure voltages in circuits of other equipment,

– measure temperature of a separate device via a thermocouple,

– measure force on a separate device via a strain gauge,

– inject a voltage onto a circuit to analyse a new design.

Equipment having these testing and measuring circuits may be intended for performing tests and measurements on hazardous conductors, including

MAINS

conductors and telecommunication network conductors. See Annex BB for considerations of

HAZARDS

involved in various tests and measurements.

Summary of Topics

This revision of ANSI/UL 61010-2-030 dated May 24, 2023 is being issued to update the title page to reflect the most recent designation as a Reaffirmed American National Standard (ANS). No technical changes have been made.

Adoption of IEC 61010-2-030, Edition 2.0 (issued 2017-01), Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part 2-030: Particular Requirements for Equipment Having Testing or Measuring Circuits, as an IEC-based UL Standard, UL 61010-2-030, Second Edition with US National Differences.

As noted in the Commitment for Amendments statement located on the back side of the title page, ULSE and CSA are committed to updating this harmonized standard jointly. However, the revision pages dated May 24, 2023 will not be jointly issued by ULSE and CSA as these revision pages only address UL ANSI approval dates.
